AC MOTORLAR

Asynchronous servomotors (Motors for industrial applications)

From 0.75 to 656 kW – frame sizes 100-315 mm

Excellent dynamic performances
Exceptional field weakening operation
Reduced maintenance
Speed versatility: from 300 rpm to 7,500 rpm
Suitable for use as Direct Drives

MAC QI Series

Cooling type: IC 06
Protection degree: IP 23
Nominal speed: 240 – 4100 rpm
Maximum speed: up to 7500 rpm
Nominal power: 3 – 656 kW
Nominal torque: 38 – 7200 Nm

maciq

From 0.75 to 656 kW – frame sizes 100-315 mm

MAC QW Series

Cooling type: IC 97W liquid-cooled
Protection degree: IP 23
Nominal speed: 250 – 1920 rpm
Maximum speed: up to 4000 rpm
Nominal power: 37 – 428 kW
Nominal torque: 743 – 4680 Nm

macqw

MAC QX Series

Cooling type: IC 06
Protection degree: IP 23
Nominal speed: 326 – 4100 rpm
Maximum speed: Up to 7500 rpm
Nominal power: 3 – 248 kW
Nominal torque: 35 – 1440 Nm

macqx

MAC QE Series

Cooling type: IC 416
Protection degree: IP 54
Nominal speed: 271 – 3650 rpm
Maximum speed: Up to 7500 rpm
Nominal power: 2,1 – 178 kW
Nominal torque: 20 – 1700 Nm

macqe

MAC R Series

Cooling type: IC 416
Protection degree: IP 54
Nominal speed: 1420 – 2530 rpm
Maximum speed: Up to 5000 rpm
Nominal power: 0,75 – 7,1 kW
Nominal torque: 5 – 26,5 Nm

macr

DC MOTORLAR

Direct current motors (Motors for industrial applications)

From 1 to 250 kW – frame sizes 100-200 mm

Excellent dynamics based on robust control

Simple regenerative braking

High efficiency

Low Electromagnetic interference (EMI)

Cost efficiency in high power applications

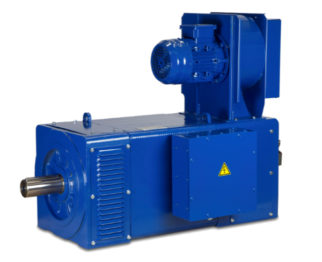

ID Series

Cooling type: IC 06
Protection degree: IP 23
Nominal speed: 590 – 3790 rpm
Maximum speed: up to 5000 rpm
Nominal power: 2 – 215,1 kW
Nominal torque: 31 – 1226 Nm

id

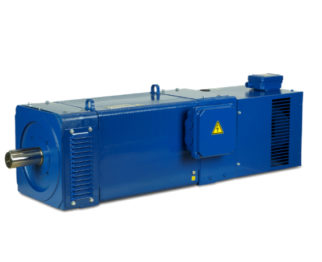

IDX Series

Cooling type: IC 06
Protection degree: IP 23
Nominal speed: 590 – 3100 rpm
Maximum speed: Up to
4500 rpm
Nominal power:
11 – 193,6 kW
Nominal torque:
100 – 1104 Nm

idx
